Research & Development Institute
고객 환경에 깊은 이해와 노하우를 바탕으로,
산업 자동화에 꼭 필요한 IoT 기술 기반
센서 시스템을 연구개발 및 제공합니다.
기업부설연구소

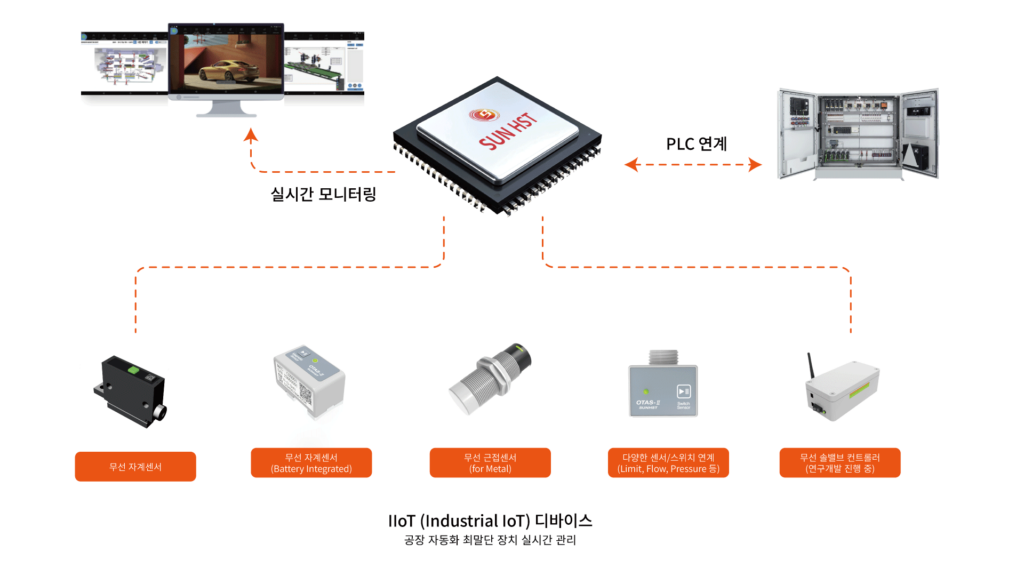

Industrial IoT Sensor System
IIoT Device
Insudtrial IoT Sensors

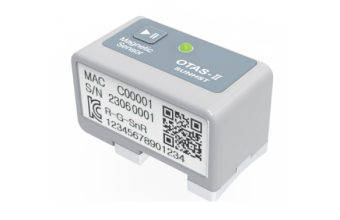

IoT Magnetic Sensor
Specification
RF Protocol
BLE 5.0
Power
3.6V / 3600mA Primary Battery
Sensitivility
3mT / 9.5mT / 40mT
Operation Temperature
-20℃ to 70℃
Indicator LED
Green / Red
Material
Polycarbonate / Aluminium
Size
38 x 22 x 24mm (L x W x H)
Weight
27g

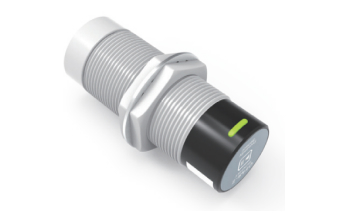

IoT Proximity Sensor
Specification
RF Protocol
BLE 5.0
Power
3.6V / 3600mA Primary Battery
Sensing Area Diameter
Ø30mm
Sensing Distance
10mm
Indicator LED
Green / Red
Material
Polycarbonate and others
Size
Ø 30mm, L 80mm
Weight
67g
Insudtrial IoT Sensing Module / Sensor Hub

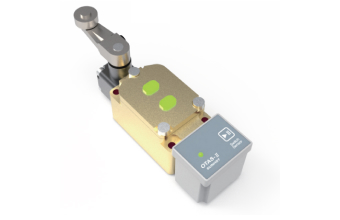

IoT Sensing Module
Specification
RF Protocol
BLE 5.0
Power
3.6V / 3600mA Primary Battery
Sensing Type
Limit Switch Open / Close
Operation Year
5 years
Indicator LED
Green / Red
Material
Polycarbonate and others
Size
41 × 30 × 36 mm (L x W x H)
Weight
47g

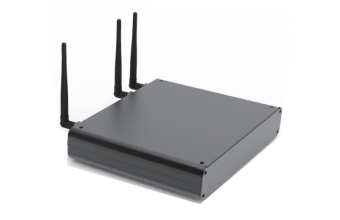

loT Sensor Hub
Specification
RF Protocol
BLE 5.0
Power
Min 10V / Normal 36V / Max 48V
Ports
Ethernet 4 ports
Operation Temperature
-30°C to 65°C
Indicator LED
Green / Red /Yellow
Material
Aluminum (standard)
Size
200 x 250 x 400 mm
Weight
680g
시스템 소개영상
